TOOLMAKING





Our toolmaking employees ensure the smooth implementation of the design's requirements.
The data is converted into milling data at our 5 programmer workstations at present. At these workstations, we use the DepoCam and hyperMill programs, which create the data for our 7 portal milling machines equipped with Heidenhain control.

OUR TECHNIQUE

pic-05

pic-03

pic-04

TOOLMAKING MACHINERY

The machinery in the milling department consists of the following machine types:

trimill

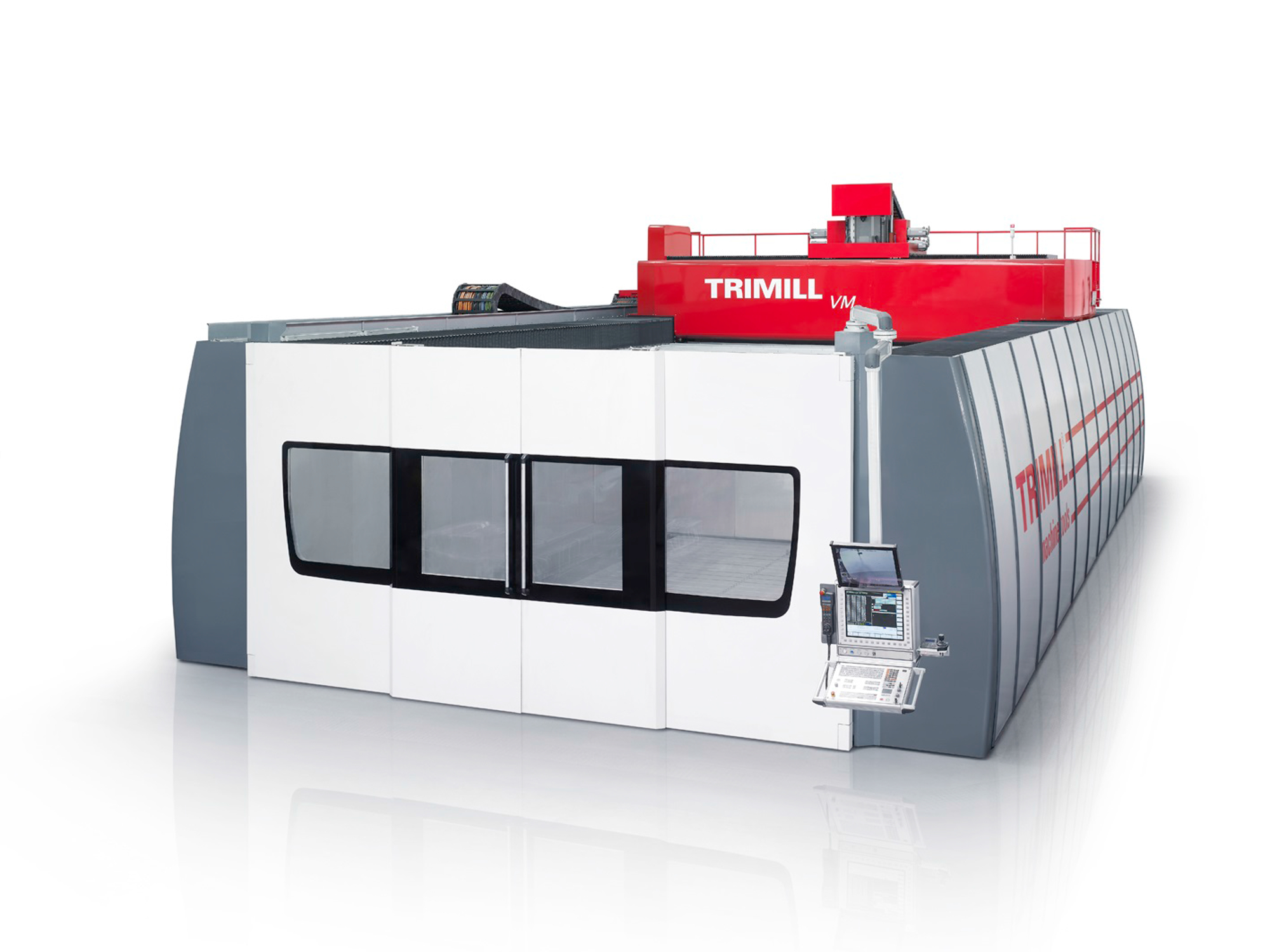

TRIMILL VM 7035
August 2016, we had put our new 5-axis, vertical portal milling machine from TRIMILL into operation. The TRIMILL VM 7035 was built to our requirements.
Unlike our current milling machine, the VM 7035 is capable of automatic cutter head changing. We can use three different heads.

Working range
X-axis (double beam moves lengthwise/usable workspace) ...... 7,000 mm
Y-axis (slide milling unit/cross slides move crosswise) ...............3,500 mm
Z-axis (slide milling unit move vertically) ....................................1,500 mm
C-axis (rotation of the interface for docking the milling heads) +/-240 degrees
Clear opening between the side walls ...... 5,198 mm

Traverse speeds
X-, Y- and Z-axis .................... 40,000 mm/min
C-axis .................................... 50 1/min

558A1282



Machine type:
TRIMILL VF 4525

3+2-axis machine for machining of large tools with automatic tool change.
The clamping surface for tools is 5000 x 2800 mm.
Traverse path in X 4500 Y 2500 Z 1250 (mm)

558A1269



Machine type:
TRIMILL VC2314

3-axis machine for the machining of medium-sized workpieces with an automatic tool change.
Transverse path in X 2300 Y 1400 Z 850 (mm)
This machine type is used twice.



558A1267



Machine type:
DEPOCUT

3-axis machine, especially stable in portal design, which is suitable for the heaviest metal cutting and can be used on components of up to 20 tons.
Traverse path in X 2000 Y 1200 Z 800 (mm)



558A1263



Machine type:

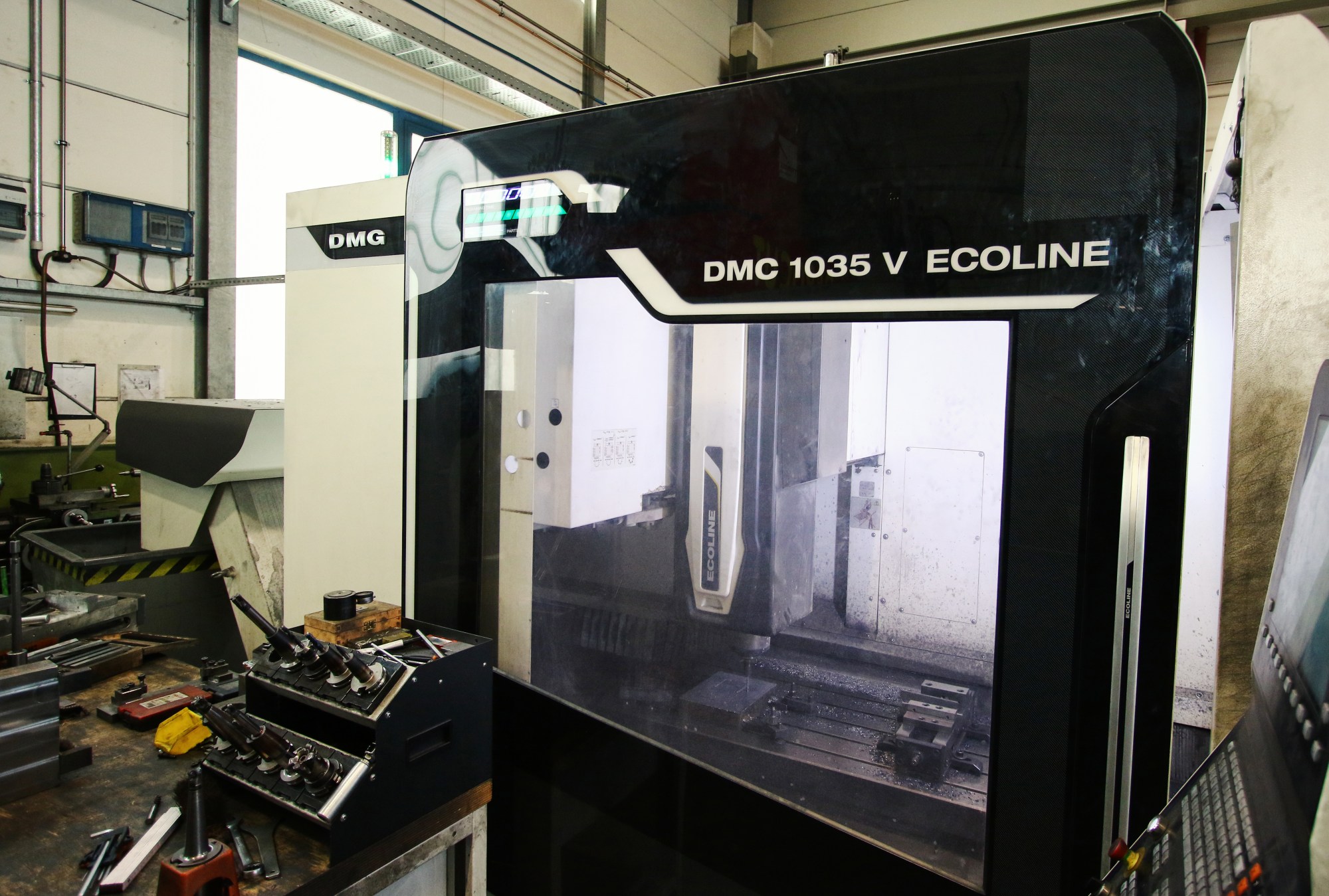

DMC 1035 V ECOLINE

3-axis machine used for metal cutting of smaller tools.
Traverse path in X 1000 Y 350 Z 510 (mm)

558A0798



Machine type:
DMU 210P

5-axis portal milling machine (all axes simultaneously) with 1700 (mm) rotary table

Transverse path in X 1800 Y 2100 and Z 1250 (mm)
